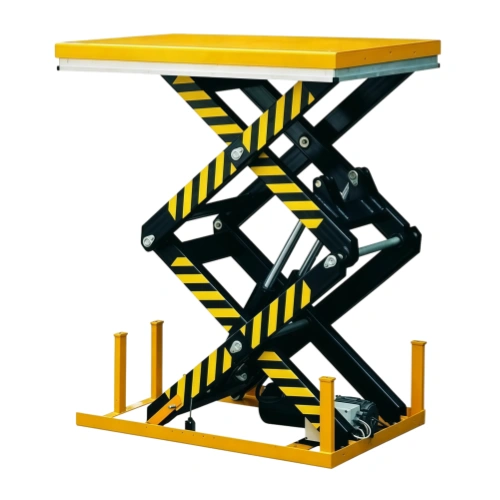

Stationary Lift Table — Heavy-Duty Hydraulic Scissor Lift Platform|Double Scissors HD Series
The HD Series stationary double scissor lift table provides stable, high-performance hydraulic lifting for fixed workstation material handling. It covers load capacities from 1000kg to 4000kg with a maximum lifting height of 1780mm, ideal for standard industrial lifting and positioning tasks.
Built with a sturdy double-scissor structure, the lift delivers excellent stability during lifting and lowering. Equipped with a high-quality hydraulic pumping station, it ensures smooth, consistent and powerful load movement.
Multiple safety features ensure reliable operation: obstacle safety stop, overload protection, and hydraulic explosion-proof valves that prevent sudden platform drop if the oil pipe is damaged.
Fully electric hydraulic operation requires no manual pumping, improving working efficiency and operator safety.
Available in HD1000, HD2000 and HD4000 models, the HD series is widely used in production lines, warehouses, packaging, food processing, pharmaceutical workshops and laboratories. Custom sizes and voltage options are available to meet different industrial requirements.
Series HD — Stationary Scissor Lift Table
| Model | HD1000 | HD2000 | HD4000 |
|---|---|---|---|
| Capacity kg (lb) | 1000 (2200) | 2000 (4400) | 4000 (8800) |
| Lowered height mm (in) | 305 (12) | 360 (14.2) | 400 (15.7) |
| Raised height mm (in) | 1780 (70) | 2050 (80.7) | |
| Platform size mm (in) | 820×1300 (32.5×51.2) |
850×1300 (33.5×51.2) |
1700×1200 (67×47.2) |
| Base frame size mm (in) | 640×1240 (25.2×48.8) |
785×1220 (31×48) |
1600×900 (63×35.4) |
| Lift time s | 35–45 | 55–65 | |
| Power pack | 380V/50Hz, AC 1.1 kW | ||
| Net weight kg (lb) | 210 (462) | 295 (649) | 520 (1144) |
Specifications are for reference only; actual dimensions may vary by ±2%. Power supply configurable for regional requirements (110V/220V/380V/415V). OEM & ODM welcome — contact us for custom platform sizes.
